CoreCera 999
Aluminium oxide, Al2O3, 99.9% pure
Density3.985 g/cm³
Bending strength, 4 pt430 MPa
Hardness HV101550
Thermal conductivity37 W/mK
Max service temperature1650 °C
LCM ceramic printing
Dense ceramic, printed to tolerance.
Lithography based ceramic manufacturing for alumina, zirconia and silica. 99.4% of theoretical density, 40 µm tolerance, and no tooling to pay for before you know the part works.
40µm
Tolerance on request
0.3µm
Best as sintered Ra
8
Qualified grades
2days
To a priced quote
Trusted by engineers and equipment makers worldwide
What we print
Geometry that a tool cannot reach.
Cores, lattices and channels that would otherwise need a mould, a five axis mill or a small miracle. We print the green part, remove the binder, then sinter it dense.
Casting cores
Internal cooling channels and thin walled cores for single crystal blades, then leached out after casting.
Silica based CoreCera SC
Filtration and flow
Honeycomb and gyroid structures with channel walls down to 100 µm, held uniform across the whole cross section.
Alumina and zirconia

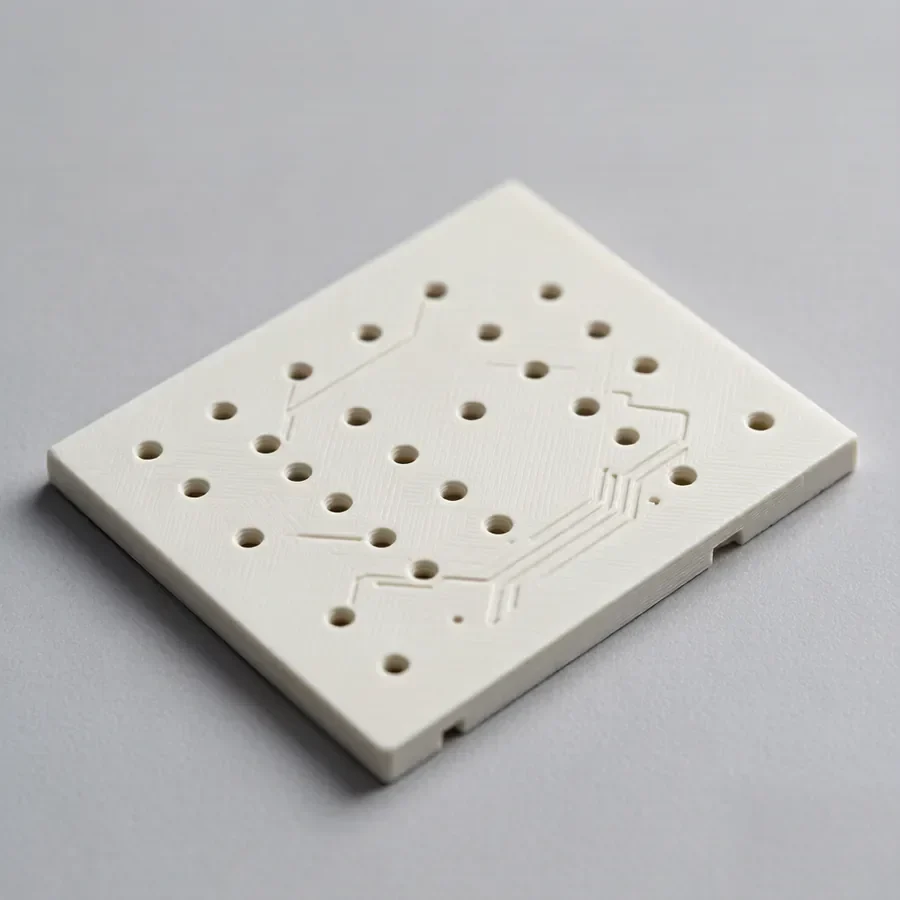

Electronics and thermal
Alumina and zirconia for high voltage insulation, aluminium nitride for heat that has to leave the part, with vias and standoffs printed in the same build.
See applications

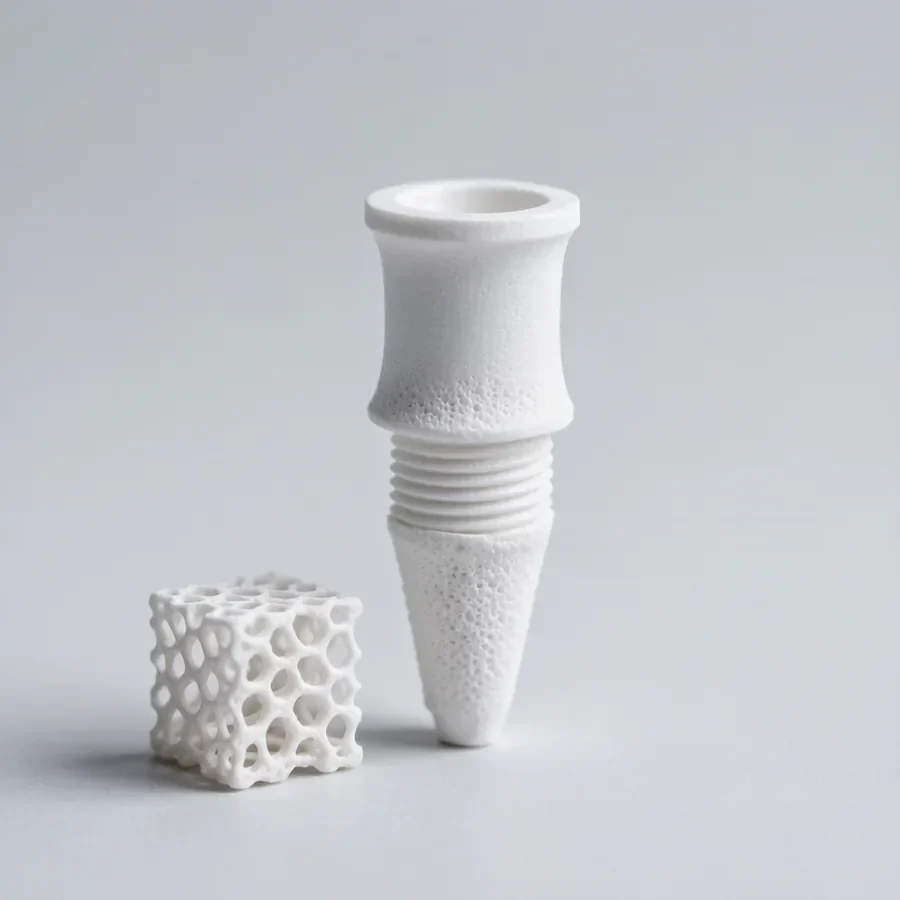

Medical and dental
Zirconia abutments and porous bone scaffolds built from patient geometry, with controlled pore size and strut thickness.
Biocompatible zirconiaFour steps, one logged parameter set.
Additive is only the first third of the job. The parts that fail usually fail in debinding or in the furnace, so that is where we spend our attention.
1
Cure the slurry
A 460 nm DLP engine exposes each layer through a transparent vat while a blade re-coats ceramic loaded slurry.
2
Remove the binder
Organics come off on a controlled ramp so the green part does not crack before it ever reaches the furnace.
3
Densify the ceramic
The part shrinks as it densifies. We model that compensation into the build file, geometry by geometry.
4
Measure the result
Optical metrology and CT scanning confirm wall thickness and internal channels before anything ships out.
Materials
Three workhorses, eight qualified grades.
Oxide grades we run every week, plus non-oxide grades for heat, thermal shock and wear. Every figure below is measured on printed and sintered test bodies, not borrowed from a pressed and machined data sheet.
CoreCera 3Y
Yttria stabilised zirconia, 3 mol% Y2O3
Density6.088 g/cm³
Bending strength, 4 pt930 MPa
Hardness HV101250
Thermal conductivity2.5 to 3 W/mK
Max service temperature1500 °C
CoreCera AN
Aluminium nitride, AlN, for moving heat
Density3.26 g/cm³
Bending strength, 3 pt265 MPa
Hardness HV101100
Thermal conductivity170 W/mK
Max service temperature1000 °C in air
What the process actually holds.
Lithography based ceramic manufacturing, specified per build rather than per brochure.
40µm
Pixel size in the build plane
25µm
Standard layer height, 10 to 100 µm available
100µm
Minimum wall thickness, as sintered
60vol%
Maximum solids loading in the slurry
460nm
DLP exposure wavelength
192mm
Longest build axis
Measured, not assumed.
Ceramic additive manufacturing fails at the margins. Thin walls crack in debinding, shrinkage opens up tolerances, and one bad furnace cycle can undo a week of printing. Every step below is logged against your order number.
Shrinkage modelled per geometry
15 to 20% linear, applied in the build file and checked against the first article.
First article report
A dimensional report ships with every new geometry, before the batch runs.
Batch traceability
Powder lot, slurry batch and furnace cycle recorded against each order.

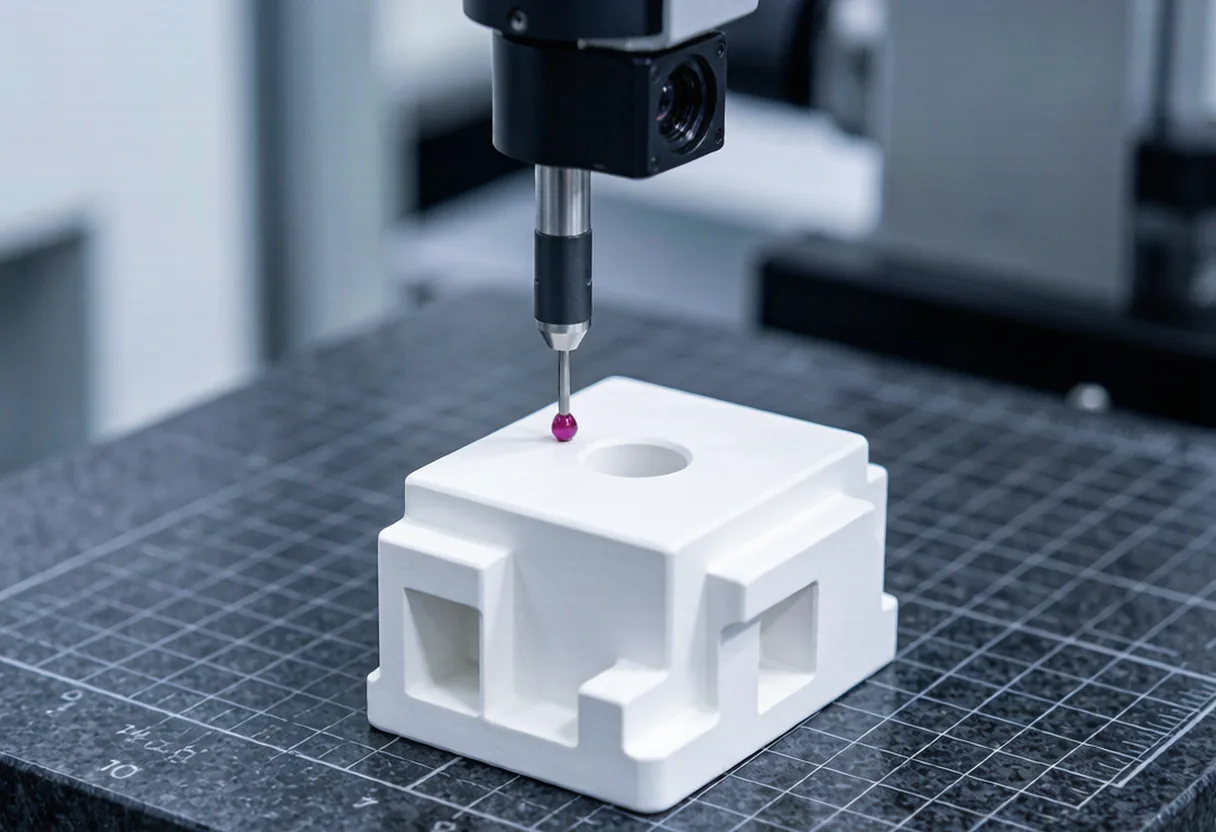

Optical and CT metrology
Wall thickness and internal channels verified, not estimated.
Resources
Take the data with you.
Grade data sheets, a capabilities brochure and a design guide — free to download, no form and no email gate.
Capabilities brochure
BrochureWhat we print, the materials we run and the industries we serve.
EN · PDFDownload
LCM design guide
GuideWall thickness, shrinkage, overhangs and internal channels — the four rules that decide whether a geometry prints.
EN · PDFDownload
Why technical ceramics
GuideWhere ceramic beats steel, aluminium and polymer: temperature, wear, corrosion, electrical behaviour and weight.
EN · PDFDownload
Send us the geometry.
Upload a STEP or STL file with your material and quantity. We quote within two business days and flag any wall thickness or shrinkage risk before we print.
Upload a part
STEP, STP, STL, 3MF or IGES. NDA on request.
